Quick-Start and Quick-Learn of Openshift Virtualization

Since the previous article was a lengthy introduction on Openshift Virtualization, I wanted to do something fun and productive for this next article. There will be some other articles later on deeper dives and more advanced stuff, but let's do some quick-learning on the most popular topics (in my opinion).

Creating a Basic VM Using Pre-Populated Templates

To make things exciting, we will first create a VM off one of the templates that is provided.

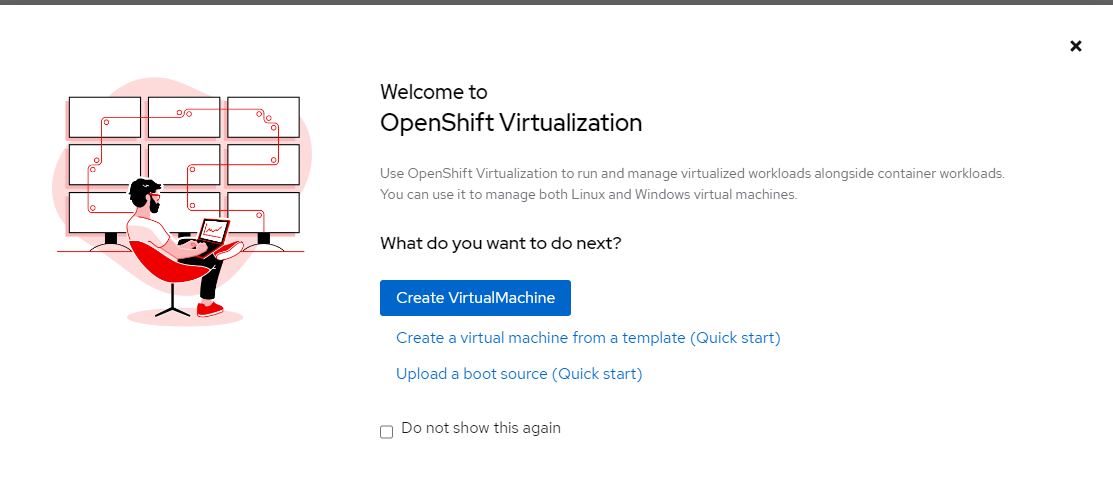

If this a new install and you have not created a VM yet, a quick-start page will appear that provides the option to "Create Virtual Machine". There are also some other quick-start guides from Red Hat on these processes. I will do some of the same things that are mentioned in the article but will add some other context that I feel is important.

Go back to the Openshift Web Console and select Virtualization --> Overview tab.

Click "Create VirtualMachine".

On this screen, you will see two tabs. One is "InstanceTypes" which is the default page and "Template Catalog".

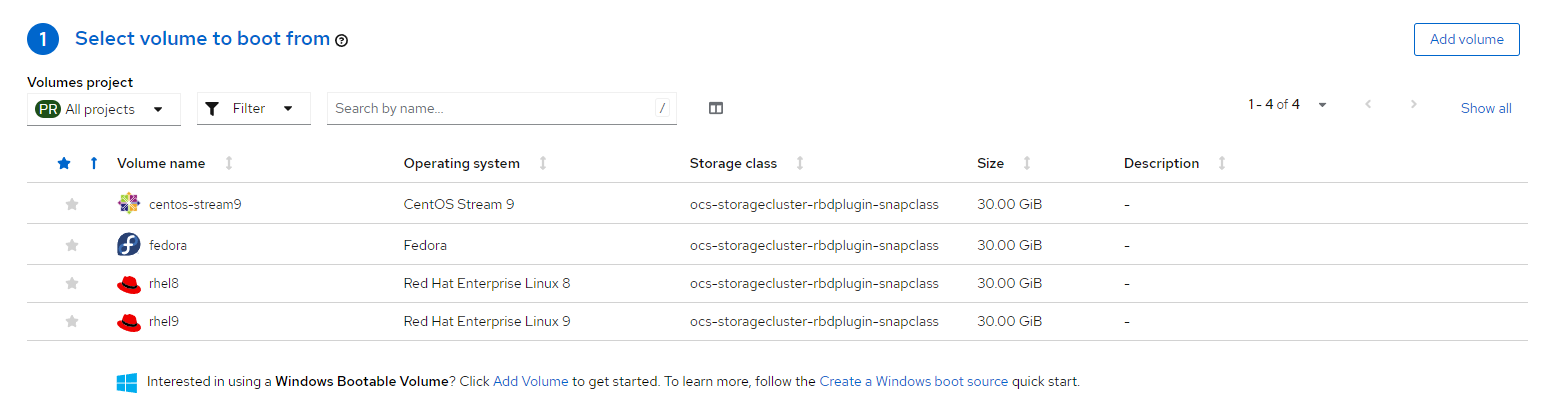

On the "InstanceTypes" page, the first thing to do is select a volume to boot from. There are 4 volumes that are avaiable immediately to boot from. These were based on snapshots that were taken of a base-install of these operating systems (I will show you how to create volumes to boot from later). The choices are currently:

centos-stream9
fedora
rhel8
rhel9

Let's create a VM based off of Fedora. Click on the "Fedora" icon.

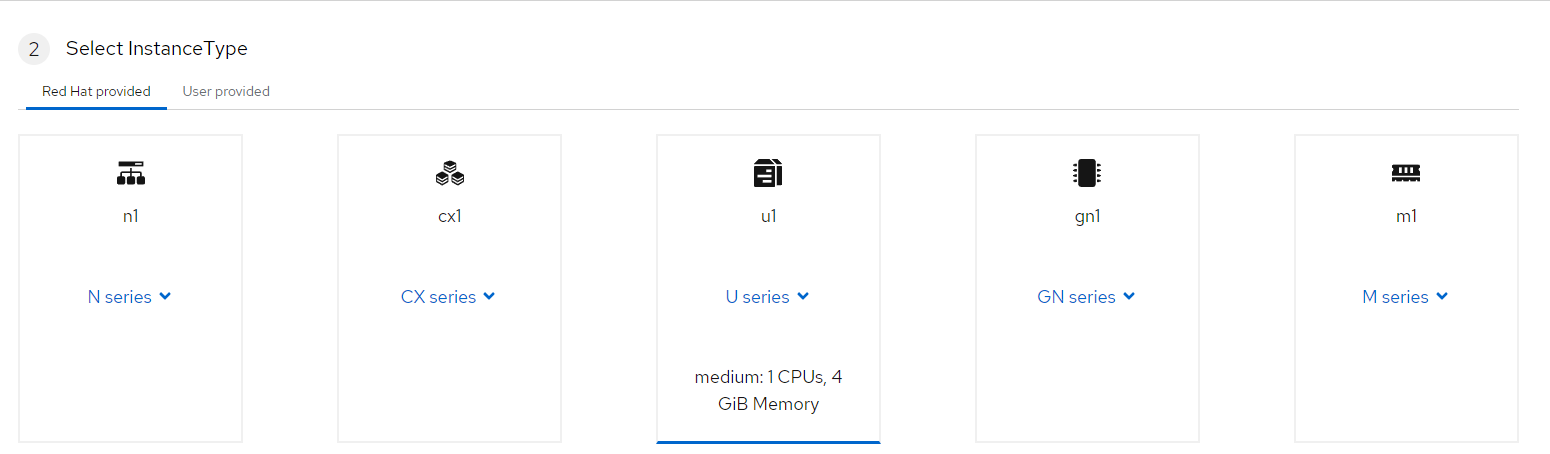

By default, the instance-type is set to u1 which is for universal workloads. This means that these VMs equally share cpu memory time-slices with other VMs (no special priorities). Medium means 1 CPU and 4Gib of memory.

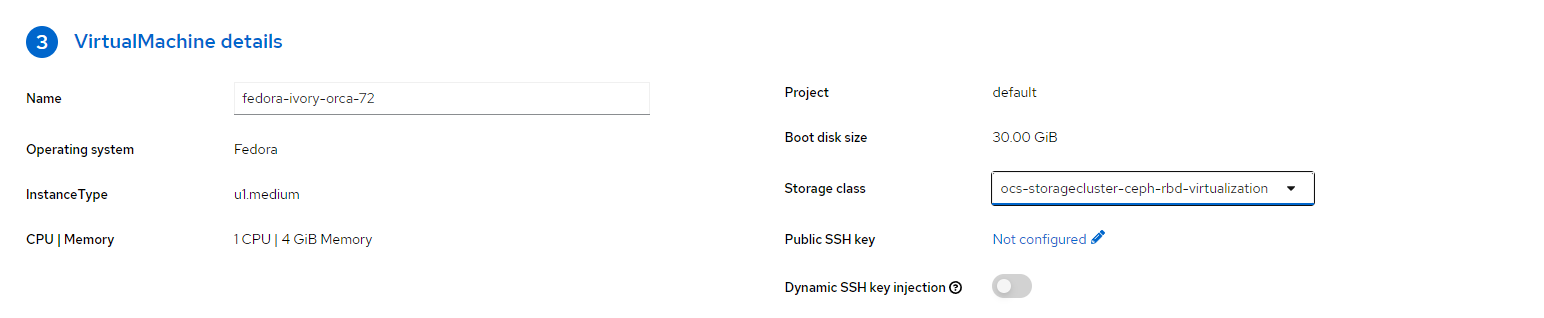

The last step for this demonstration is setting any special virtual machine details. The default are sufficient but I want to explain this a little more.

This sample creates the VM in the default project/namespace for now. The boot disk-size is 30GB but is expandable (more on this later). The default storage class that is setup when Openshift Virtualization is installed is called ocs-storagecluster-ceph-rbd-viurtualization and provides rwo (read-write-once) and rwx (read-write-many) block devices.

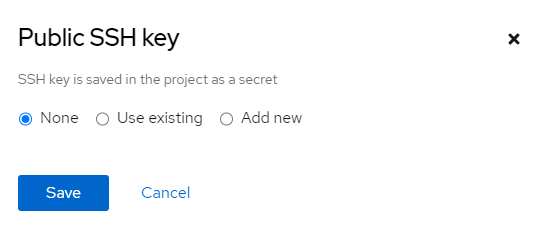

I am not going to set a public SSH (used to SSH into the VM using public-key) but here is the menu that appears if you decide to do this.

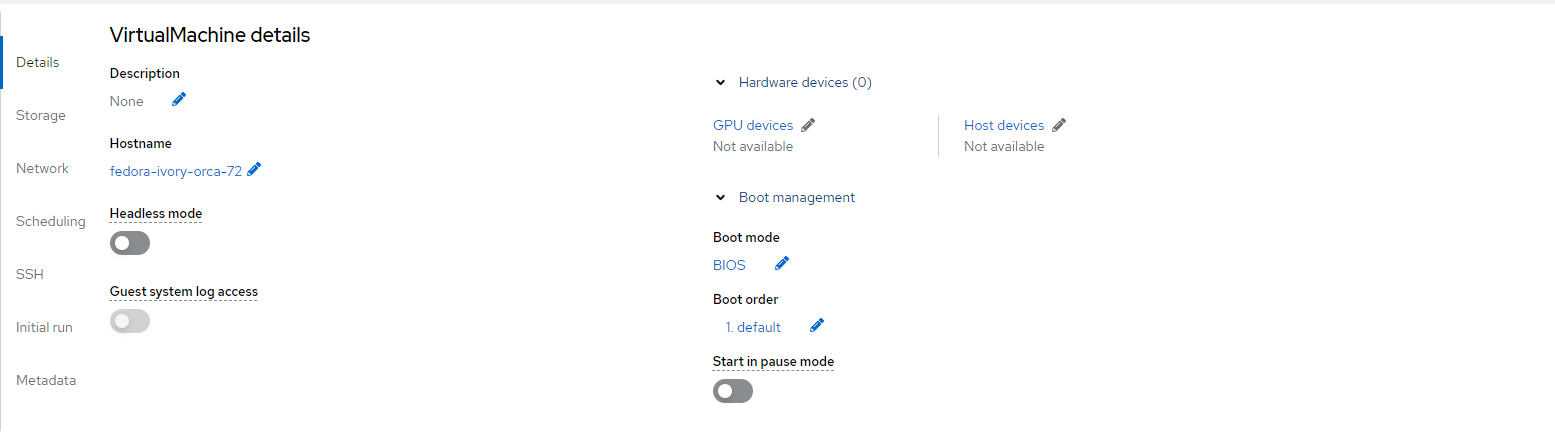

No customizations will be done to for this demonstration but a high-level view of this screen is helpful. This will be built upon in a later post.

Some of the options that are not as self-explanatory, here is a short description:

Headless Mode- A way to access the VM without attaching a default graphics device. This is useful for non-desktop systems when VNC access is not required.

Guest System Log Access - An easier way to see logs from the VM. This visibility is integrated with the Openshift Web Console.

Hardware Devices - Whether any hardware devices from the node will be passed through the VM. This is commonly done with GPUs.

Boot Mode - BIOS, UEFI, or secure UEFI are available.

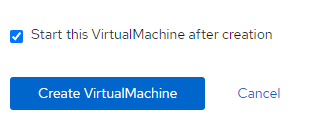

Let's get to creating the virtual machine. Click "Create VirtualMachine" and leave the option set to start the virtual machine after creation.

What Happens Inside of Openshift

Within a few minutes of creating this virtual machine, it's status should change to "Running". Here are some screenshots and explanations for some of the items that appear on the screen that immediately appears after creating the VM. This is the "Virtual Machine" details screen. It can be accessed later by going to the Virtualization – > Virtual Machines tab on the Openshift Web Console.

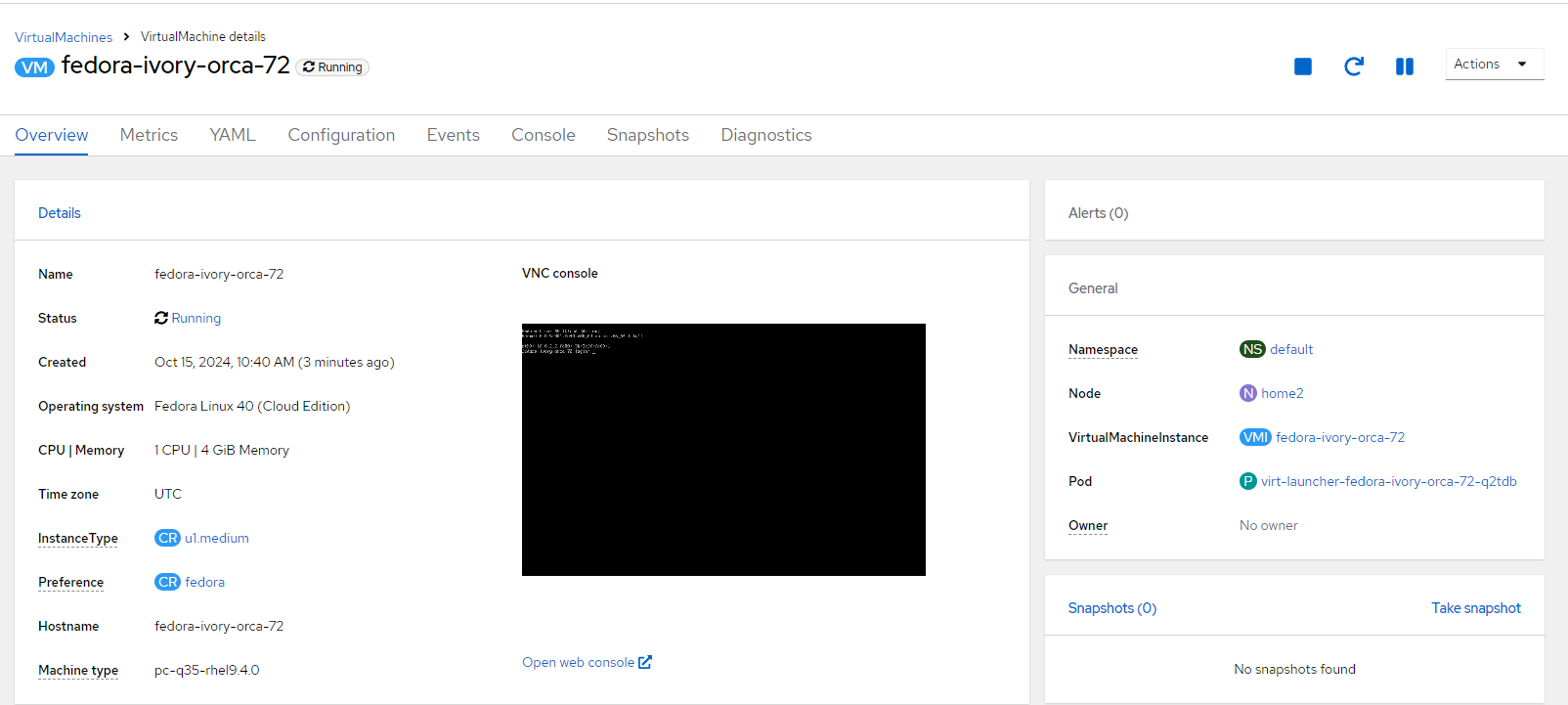

Once the VM starts up, a VNC console will appear (very small) with a login prompt.

Most of the information shown on this screen is self-explanator but one thing I want to mention is the virt-launcher pod that appears on the right side of the screen under "General".

I will provide a very brief and simple explanation on this for now. The virt-launcher pod ties the virtualization layer (libvirt) with Kubernetes constructs. Since Kubernetes/OCP is a container-based orchestration, there needs to be an interface between Kubernetes and libvirt. This is what ties the container-orchestration system and the hypervisor together. One important aspect to the virt-launcher pod is that it provides an easy means to troubleshoot startup issues from within Kubernetes. This is typically the first object to look at when troubleshooting is needed.

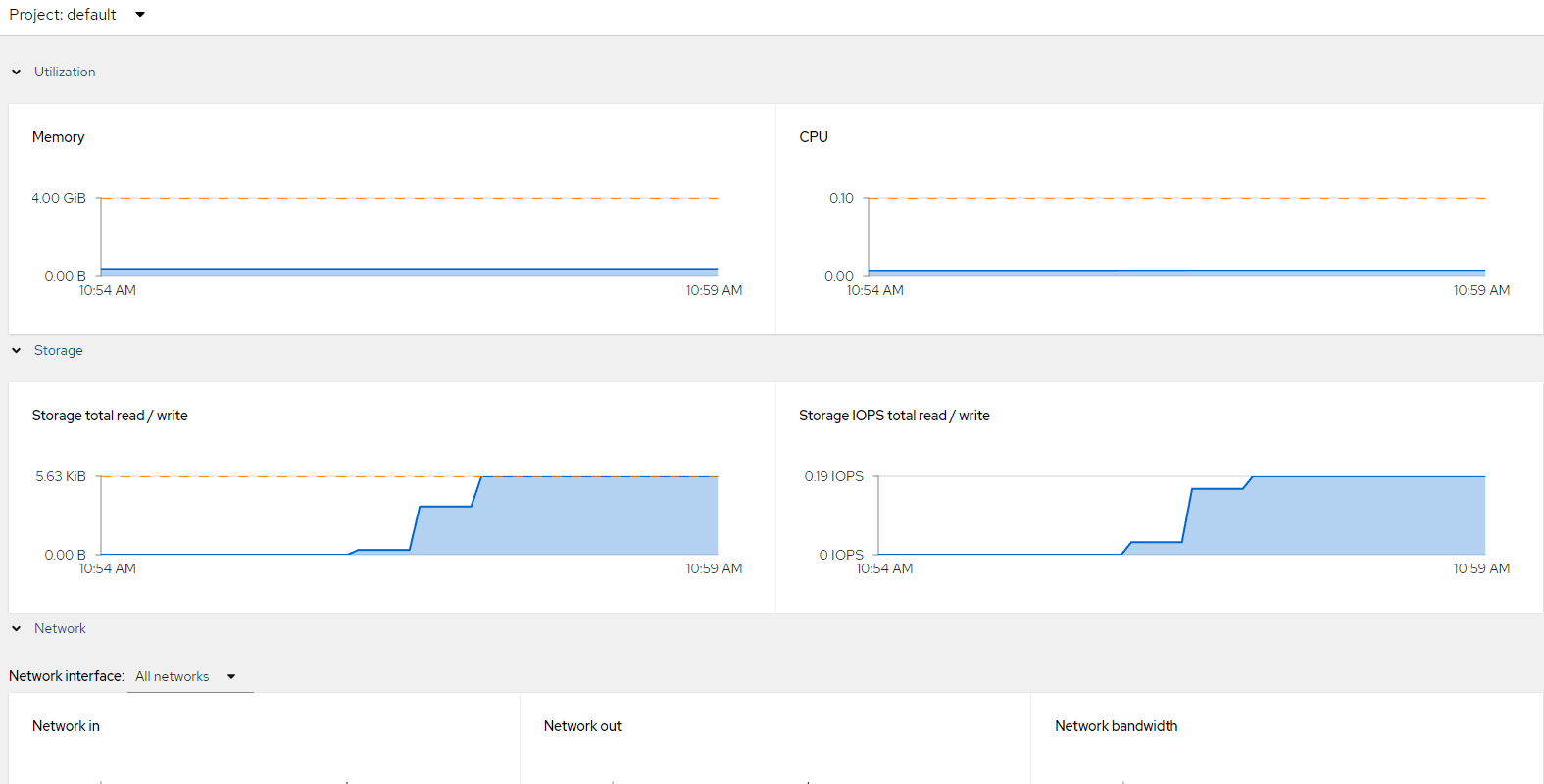

The Metrics tab shows memory, cpu, networking, and migration statistics.

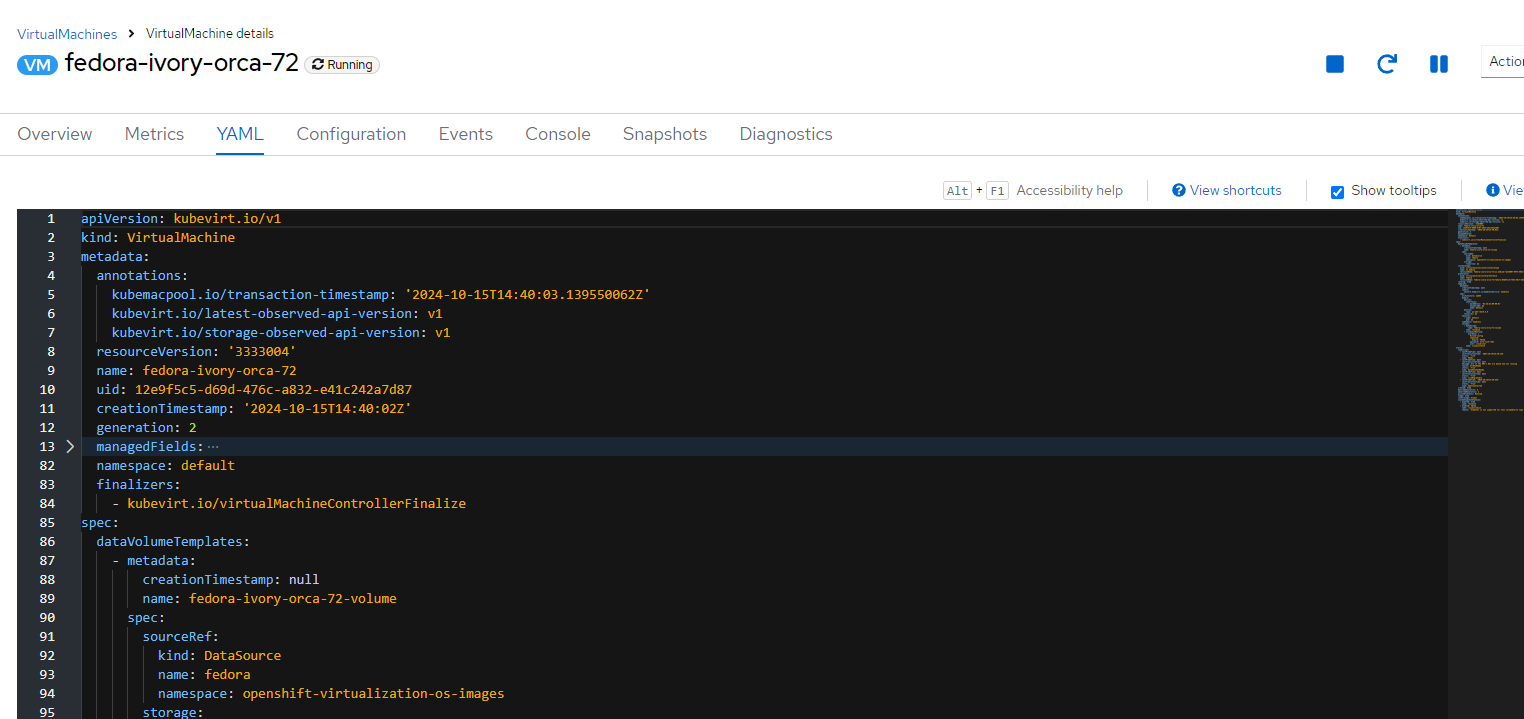

The YAML tab will show the definition of the VirtualMachine CR. More on what is contained in these CRs will be shown in the next section.

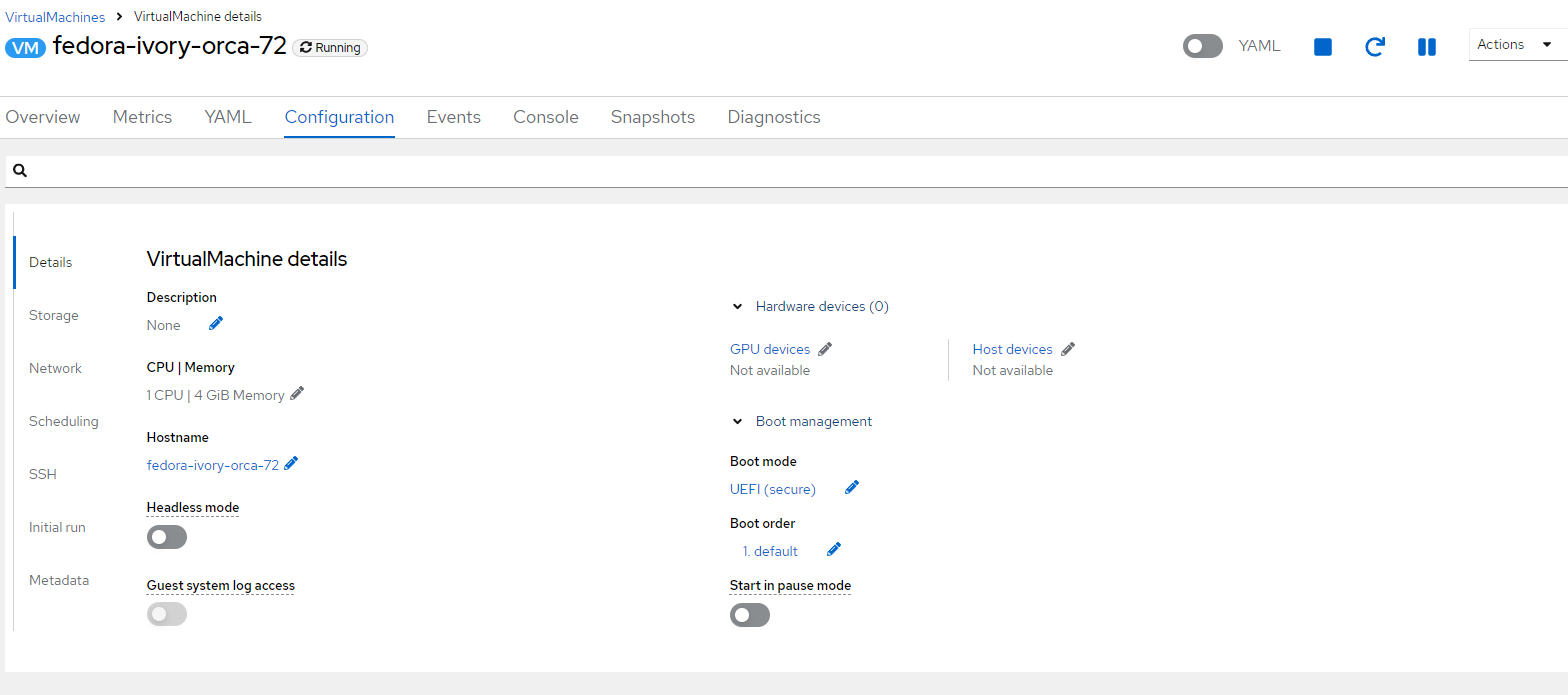

The Configuration tab is the same screen that was used earlier when the VM was created.

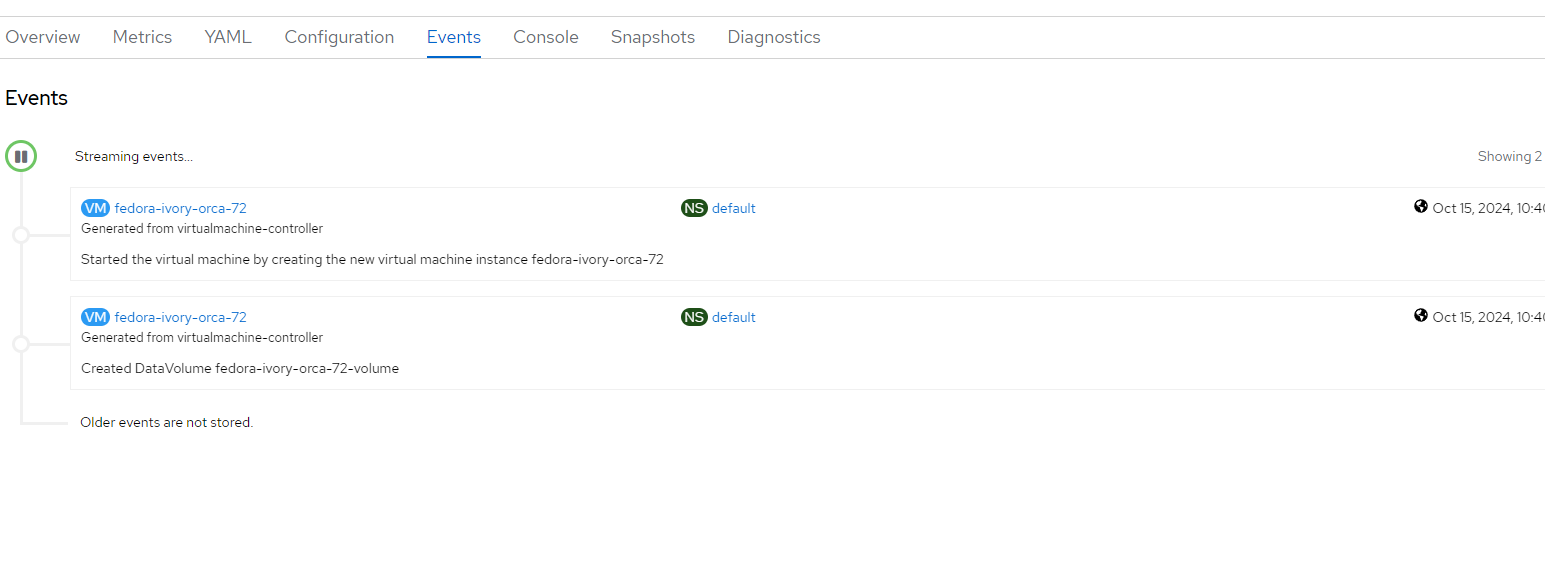

The Events tab for this creation shows two things that happened. The DataVolume object was created and the VM was started.

Just as the Virt-Launcher pod ties Kubernetes constructs to the VM layer, the datavolume is a sub-layer in some regards meaning that it ties all of the Kubernetes storage constructs together with the virtualization storage resources. Again, this is a simple explanation for now.

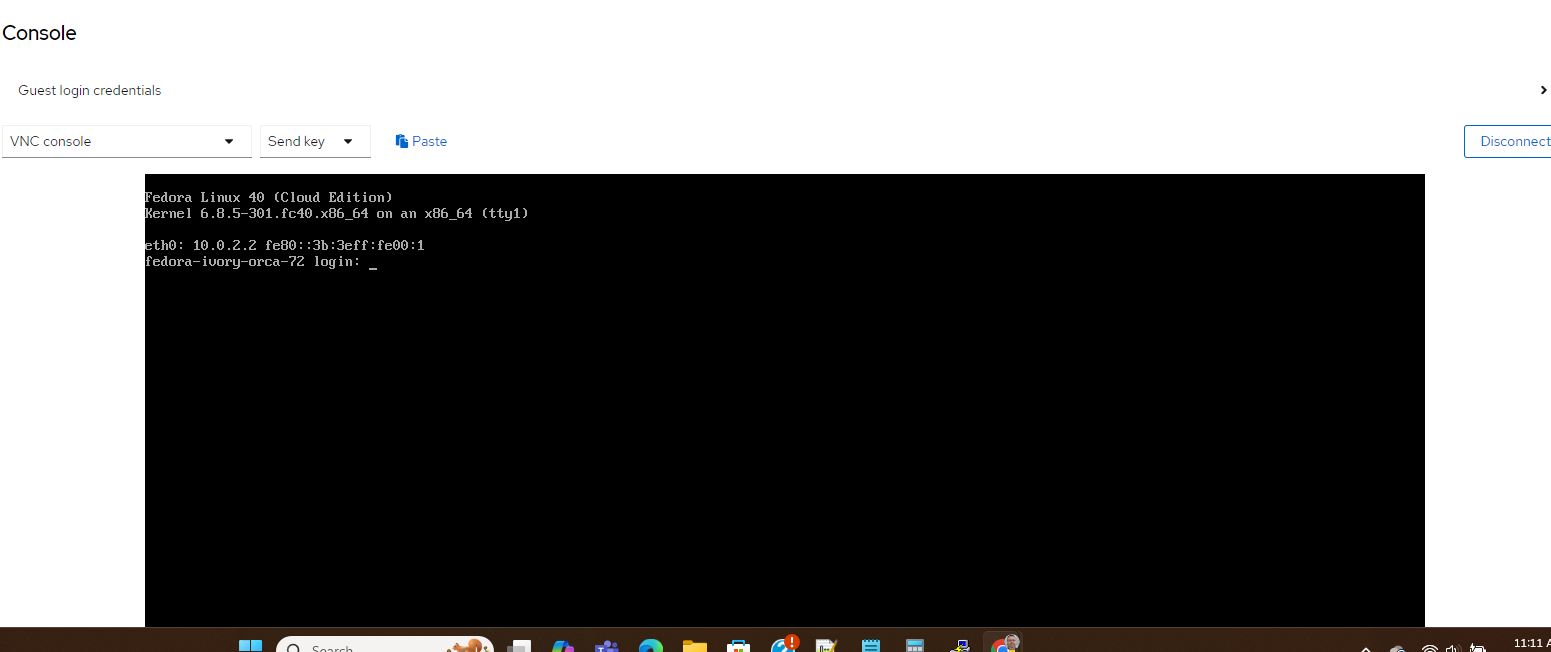

The console tab provides a way to access the console of the VM through a VNC console (similar to connecting a monitor to a physical machine) or serial which is a way to manage this out-of-band. In physical environments, this serial method would be used if networking did not come up on the physical machine and you needed a backdoor to access the machine.

To get the username and password in order to login to the console of the VM, look at the VM object. This VM is located in the default project/namespace in this example.

oc get vm

oc get vm <name from above> -o yaml|grep -A5 cloudInitNoCloud

The username is cloud-user and password is ei72-tin4-r38z based on this example.

The Snapshots tab will allow you to take a snapshot of the rootdisk. You are unable to take a snapshot of the cloudinitdisk. Just for clarity, the cloudinitdisk was used to build this VM initially. This image was basically cloned to become the root disk of the Fedora VM we are using here.

You can do a snapshot and use this later to build another Openshift Virtualization based VM. This task will demonstrated in a follow-on article.

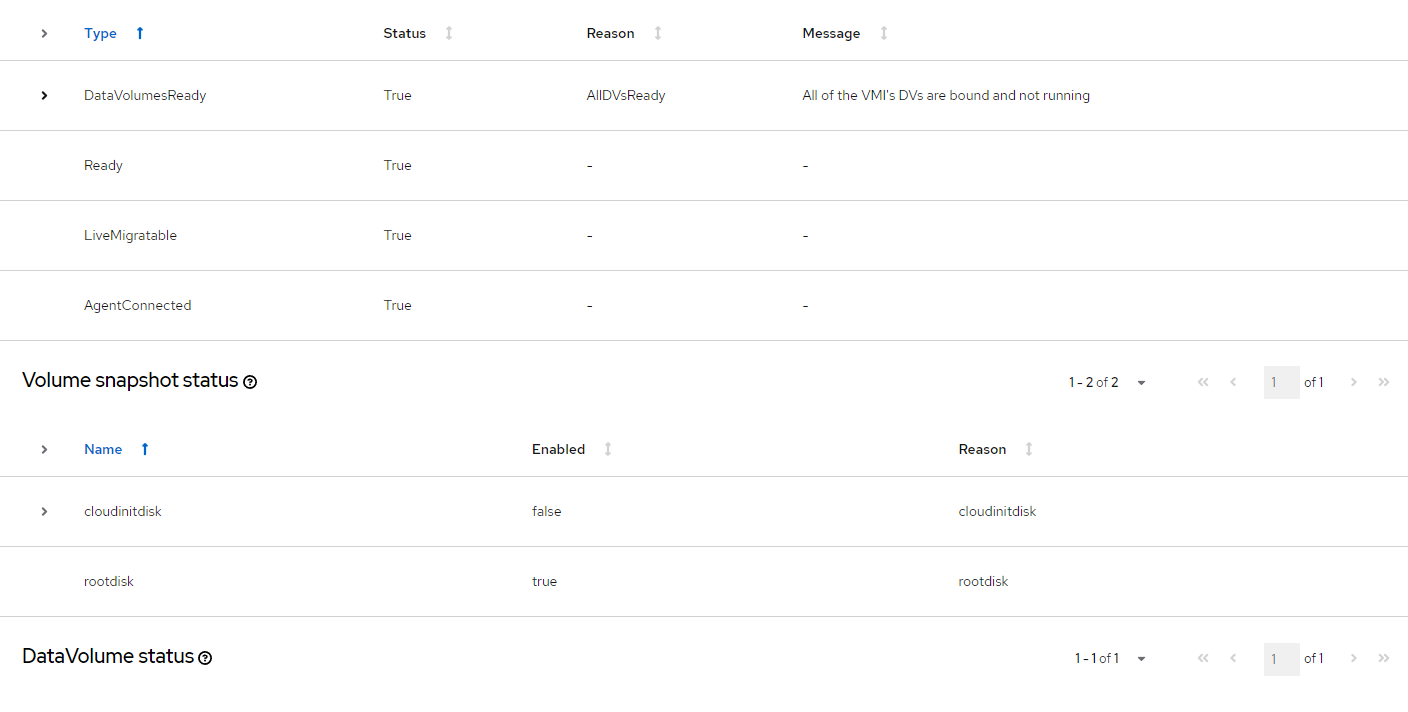

The Diagnostics tab provides a means to verify some status information on the VM and also a way to view system logs of the VM is this feature is enabled.

What Happens Inside of Openshift

After creating this Fedora VM, a bunch of CRs (custom resources), pods, and other objects are created to make this happen. Let's look through these objects and attempt to understand (at a high-level) the flow that happens to enable the creation of this VM.

The base operating system for these templates has a few objects. For example:

datasources- In the openshift-virtualization-os-images project/namespace, these resources exist for centos, fedora, rhel, and windows operating systems. One key difference with the windows VMs is that a boot source is not available. I will be writing some articles shortly that cover how to create custom boot sources.

To see this how the VM creation process works, let's look at some of the objects that are created. This is a very simplistic view but gets us started. The process starts with some CDI (containerized data importer) operations and concludes with the virt-launcher pod and vm/vmi resourcess being created.

A datasources object exists for fedora (and some other operating systems) when Openshift Virtualization is first installed.

oc get datasources fedora -n openshift-virtualization-os-images  -o yaml

apiVersion: cdi.kubevirt.io/v1beta1
kind: DataSource
metadata:
  annotations:
    operator-sdk/primary-resource: openshift-cnv/ssp-kubevirt-hyperconverged
    operator-sdk/primary-resource-type: SSP.ssp.kubevirt.io
  creationTimestamp: "2024-10-14T15:17:44Z"
  generation: 5
  labels:
    app.kubernetes.io/component: storage
    app.kubernetes.io/managed-by: cdi-controller
    app.kubernetes.io/part-of: hyperconverged-cluster
    app.kubernetes.io/version: 4.16.3
    cdi.kubevirt.io/dataImportCron: fedora-image-cron
    instancetype.kubevirt.io/default-instancetype: u1.medium
    instancetype.kubevirt.io/default-preference: fedora
    kubevirt.io/dynamic-credentials-support: "true"
  name: fedora
  namespace: openshift-virtualization-os-images
  resourceVersion: "1443315"
  uid: ef0c8397-ad88-46c8-b549-863e4c77daac
spec:
  source:
    snapshot:
      name: fedora-21a6f3e628cd
      namespace: openshift-virtualization-os-images
status:
  conditions:
  - lastHeartbeatTime: "2024-10-14T15:21:06Z"
    lastTransitionTime: "2024-10-14T15:21:06Z"
    message: DataSource is ready to be consumed
    reason: Ready
    status: "True"
    type: Ready
  source:
    snapshot:
      name: fedora-21a6f3e628cd
      namespace: openshift-virtualization-os-images

For this Fedora datasource, it is based on a snapshot:

oc get volumesnapshots.snapshot.storage.k8s.io -n openshift-virtualization-os-images fedora-21a6f3e628cd -o yaml

apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  annotations:
    cdi.kubevirt.io/storage.import.lastUseTime: "2024-10-15T16:26:20.683466671Z"
    cdi.kubevirt.io/storage.import.sourceVolumeMode: Block
  creationTimestamp: "2024-10-14T15:20:38Z"
  finalizers:
  - snapshot.storage.kubernetes.io/volumesnapshot-as-source-protection
  - snapshot.storage.kubernetes.io/volumesnapshot-bound-protection
  generation: 1
  labels:
    app: containerized-data-importer
    app.kubernetes.io/component: storage
    app.kubernetes.io/managed-by: cdi-controller
    app.kubernetes.io/part-of: hyperconverged-cluster
    app.kubernetes.io/version: 4.16.3
    cdi.kubevirt.io: ""
    cdi.kubevirt.io/dataImportCron: fedora-image-cron
  name: fedora-21a6f3e628cd
  namespace: openshift-virtualization-os-images
  resourceVersion: "3475369"
  uid: 713246b2-3920-4a5e-9ab9-387f4c342d2f
spec:
  source:
    persistentVolumeClaimName: fedora-21a6f3e628cd
  volumeSnapshotClassName: ocs-storagecluster-rbdplugin-snapclass
status:
  boundVolumeSnapshotContentName: snapcontent-713246b2-3920-4a5e-9ab9-387f4c342d2f
  creationTime: "2024-10-14T15:20:47Z"
  readyToUse: true
  restoreSize: 30Gi

This snapshot is downloaded/cloned periodically based on this cronjob:

oc get dataimportcrons.cdi.kubevirt.io fedora-image-cron -n openshift-virtualization-os-images -o yaml

apiVersion: cdi.kubevirt.io/v1beta1
kind: DataImportCron
metadata:
  annotations:
    cdi.kubevirt.io/storage.bind.immediate.requested: "true"
    cdi.kubevirt.io/storage.import.lastCronTime: "2024-10-15T09:20:01Z"
    cdi.kubevirt.io/storage.import.sourceDesiredDigest: sha256:21a6f3e628cde7ec7afc9aedf69423924322225d236e78a1f90cf6f4d980f9b3
    cdi.kubevirt.io/storage.import.storageClass: ocs-storagecluster-ceph-rbd-virtualization
    operator-sdk/primary-resource: openshift-cnv/ssp-kubevirt-hyperconverged
    operator-sdk/primary-resource-type: SSP.ssp.kubevirt.io
  creationTimestamp: "2024-10-14T15:17:44Z"
  generation: 11
  labels:
    app.kubernetes.io/component: templating
    app.kubernetes.io/managed-by: ssp-operator
    app.kubernetes.io/name: data-sources
    app.kubernetes.io/part-of: hyperconverged-cluster
    app.kubernetes.io/version: 4.16.3
    instancetype.kubevirt.io/default-instancetype: u1.medium
    instancetype.kubevirt.io/default-preference: fedora
    kubevirt.io/dynamic-credentials-support: "true"
  name: fedora-image-cron
  namespace: openshift-virtualization-os-images
  resourceVersion: "2903588"
  uid: cbb42f25-ae91-439a-8325-749e939d9548
spec:
  garbageCollect: Outdated
  managedDataSource: fedora
  schedule: 20 9/12 * * *
  template:
    metadata: {}
    spec:
      source:
        registry:
          pullMethod: node
          url: docker://quay.io/containerdisks/fedora:latest
      storage:
        resources:
          requests:
            storage: 30Gi
    status: {}
status:
  conditions:
  - lastHeartbeatTime: "2024-10-14T15:20:38Z"
    lastTransitionTime: "2024-10-14T15:20:38Z"
    message: No current import
    reason: NoImport
    status: "False"
    type: Progressing
  - lastHeartbeatTime: "2024-10-14T15:21:06Z"
    lastTransitionTime: "2024-10-14T15:21:06Z"
    message: Latest import is up to date
    reason: UpToDate
    status: "True"
    type: UpToDate
  currentImports:
  - DataVolumeName: fedora-21a6f3e628cd
    Digest: sha256:21a6f3e628cde7ec7afc9aedf69423924322225d236e78a1f90cf6f4d980f9b3
  lastExecutionTimestamp: "2024-10-15T09:20:01Z"
  lastImportTimestamp: "2024-10-14T15:20:38Z"
  lastImportedPVC:
    name: fedora-21a6f3e628cd
    namespace: openshift-virtualization-os-images
  sourceFormat: snapshot

This snapshot is checked to see if it is up to date at 0920 and 1220 everyday. If it is not up to date, the OCP cluster will download a new snapshot.

These CDI objects (1 through 3 in the last) are the heart of what happens from an image-import standpoint before the VM is instantiated.

Next, the virt-launcher pod takes over. It checks for the disk-image being available. If it not available, it works with the CDI layer to clone the source/boot volume. Next, it injects some of the cloud-init settings and generates domain.xml (for libvirt).
After all of this, there are two objects. One is the VM object which provides some of the same high-level information that was used prior to instantiating the VM.

oc get vm fedora-ivory-orca-72 -o yaml

apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  annotations:
    kubemacpool.io/transaction-timestamp: "2024-10-15T17:45:45.228338854Z"
    kubevirt.io/latest-observed-api-version: v1
    kubevirt.io/storage-observed-api-version: v1
  creationTimestamp: "2024-10-15T14:40:02Z"
  finalizers:
  - kubevirt.io/virtualMachineControllerFinalize
  generation: 8
  name: fedora-ivory-orca-72
  namespace: default
  resourceVersion: "3582131"
  uid: 12e9f5c5-d69d-476c-a832-e41c242a7d87
spec:
  dataVolumeTemplates:
  - metadata:
      creationTimestamp: null
      name: fedora-ivory-orca-72-volume
    spec:
      sourceRef:
        kind: DataSource
        name: fedora
        namespace: openshift-virtualization-os-images
      storage:
        resources: {}
  instancetype:
    kind: virtualmachineclusterinstancetype
    name: u1.medium
    revisionName: fedora-ivory-orca-72-u1.medium-7a23d007-5073-40e2-a2a7-a4b4a0689617-1
  preference:
    kind: virtualmachineclusterpreference
    name: fedora
    revisionName: fedora-ivory-orca-72-fedora-65b8f1c5-7552-48cf-b350-59a4c34ad71e-1
  running: false
  template:
    metadata:
      creationTimestamp: null
      labels:
        network.kubevirt.io/headlessService: headless
    spec:
      architecture: amd64
      domain:
        devices:
          interfaces:
          - macAddress: 02:3b:3e:00:00:01
            masquerade: {}
            name: default
          logSerialConsole: true
        machine:
          type: pc-q35-rhel9.4.0
        resources: {}
      networks:
      - name: default
        pod: {}
      subdomain: headless
      volumes:
      - dataVolume:
          name: fedora-ivory-orca-72-volume
        name: rootdisk
      - cloudInitNoCloud:
          userData: |
            #cloud-config
            chpasswd:
              expire: false
            password: ei72-tin4-r38z
            user: cloud-user
        name: cloudinitdisk
status:
  conditions:
  - lastProbeTime: "2024-10-15T17:45:50Z"
    lastTransitionTime: "2024-10-15T17:45:50Z"
    message: VMI does not exist
    reason: VMINotExists
    status: "False"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: null
    message: All of the VMI's DVs are bound and not running
    reason: AllDVsReady
    status: "True"
    type: DataVolumesReady
  - lastProbeTime: null
    lastTransitionTime: null
    status: "True"
    type: LiveMigratable
  desiredGeneration: 8
  observedGeneration: 8
  printableStatus: Stopped
  runStrategy: Halted
  volumeSnapshotStatuses:
  - enabled: true
    name: rootdisk
  - enabled: false
    name: cloudinitdisk
    reason: Snapshot is not supported for this volumeSource type [cloudinitdisk]

The next object is the vmi which is only available when the VM is running and shows some of the parameters that were applied.

oc get vmi fedora-ivory-orca-72 -o yaml

apiVersion: kubevirt.io/v1
kind: VirtualMachineInstance
metadata:
  annotations:
    kubevirt.io/cluster-instancetype-name: u1.medium
    kubevirt.io/cluster-preference-name: fedora
    kubevirt.io/latest-observed-api-version: v1
    kubevirt.io/storage-observed-api-version: v1
    kubevirt.io/vm-generation: "9"
    vm.kubevirt.io/os: linux
  creationTimestamp: "2024-10-15T17:57:03Z"
  finalizers:
  - kubevirt.io/virtualMachineControllerFinalize
  - foregroundDeleteVirtualMachine
  generation: 11
  labels:
    kubevirt.io/nodeName: home2
    network.kubevirt.io/headlessService: headless
  name: fedora-ivory-orca-72
  namespace: default
  ownerReferences:
  - apiVersion: kubevirt.io/v1
    blockOwnerDeletion: true
    controller: true
    kind: VirtualMachine
    name: fedora-ivory-orca-72
    uid: 12e9f5c5-d69d-476c-a832-e41c242a7d87
  resourceVersion: "3597540"
  uid: bdcc3a2e-b3f8-46dd-b7c3-2365e1f13302
spec:
  architecture: amd64
  domain:
    cpu:
      cores: 1
      maxSockets: 4
      model: host-model
      sockets: 1
      threads: 1
    devices:
      disks:
      - disk:
          bus: virtio
        name: rootdisk
      - disk:
          bus: virtio
        name: cloudinitdisk
      interfaces:
      - macAddress: 02:3b:3e:00:00:01
        masquerade: {}
        model: virtio
        name: default
      logSerialConsole: true
      rng: {}
    features:
      acpi:
        enabled: true
      smm:
        enabled: true
    firmware:
      bootloader:
        efi:
          secureBoot: true
      uuid: 8db32afa-0681-5c29-aa5b-a26d9153f488
    machine:
      type: pc-q35-rhel9.4.0
    memory:
      guest: 4Gi
      maxGuest: 16Gi
    resources:
      requests:
        memory: 4Gi
  evictionStrategy: None
  networks:
  - name: default
    pod: {}
  subdomain: headless
  volumes:
  - dataVolume:
      name: fedora-ivory-orca-72-volume
    name: rootdisk
  - cloudInitNoCloud:
      userData: |
        #cloud-config
        chpasswd:
          expire: false
        password: ei72-tin4-r38z
        user: cloud-user
    name: cloudinitdisk
status:
  activePods:
    1e23d897-8d71-4d54-9810-dd804b7de469: home2
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2024-10-15T17:57:10Z"
    status: "True"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: null
    message: All of the VMI's DVs are bound and not running
    reason: AllDVsReady
    status: "True"
    type: DataVolumesReady
  - lastProbeTime: null
    lastTransitionTime: null
    status: "True"
    type: LiveMigratable
  - lastProbeTime: "2024-10-15T17:57:20Z"
    lastTransitionTime: null
    status: "True"
    type: AgentConnected
  currentCPUTopology:
    cores: 1
    sockets: 1
    threads: 1
  guestOSInfo:
    id: fedora
    kernelRelease: 6.8.5-301.fc40.x86_64
    kernelVersion: '#1 SMP PREEMPT_DYNAMIC Thu Apr 11 20:00:10 UTC 2024'
    machine: x86_64
    name: Fedora Linux
    prettyName: Fedora Linux 40 (Cloud Edition)
    version: 40 (Cloud Edition)
    versionId: "40"
  interfaces:
  - infoSource: domain, guest-agent
    interfaceName: eth0
    mac: 02:3b:3e:00:00:01
    name: default
    queueCount: 1
  launcherContainerImageVersion: registry.redhat.io/container-native-virtualization/virt-launcher-rhel9@sha256:444191284ff0adb7e38d4786a037a0c39a340cfea6b3a943951c8a3dc79dacb2
  machine:
    type: pc-q35-rhel9.4.0
  memory:
    guestAtBoot: 4Gi
    guestCurrent: 4Gi
    guestRequested: 4Gi
  migrationMethod: BlockMigration
  migrationTransport: Unix
  nodeName: home2
  phase: Running
  phaseTransitionTimestamps:
  - phase: Pending
    phaseTransitionTimestamp: "2024-10-15T17:57:03Z"
  - phase: Scheduling
    phaseTransitionTimestamp: "2024-10-15T17:57:04Z"
  - phase: Scheduled
    phaseTransitionTimestamp: "2024-10-15T17:57:10Z"
  - phase: Running
    phaseTransitionTimestamp: "2024-10-15T17:57:11Z"
  qosClass: Burstable
  runtimeUser: 107
  selinuxContext: system_u:object_r:container_file_t:s0:c695,c973
  virtualMachineRevisionName: revision-start-vm-12e9f5c5-d69d-476c-a832-e41c242a7d87-9
  volumeStatus:
  - name: cloudinitdisk
    size: 1048576
    target: vdb
  - name: rootdisk
    persistentVolumeClaimInfo:
      accessModes:
      - ReadWriteMany
      capacity:
        storage: 30Gi
      filesystemOverhead: "0"
      requests:
        storage: 30Gi
      volumeMode: Block
    target: vda

Again, this a very simplistic view but will give you some familiarity with these objects/CRs to better understand the follow-on articles that will be written on this topic.

I hope you enjoyed this article. Many more to come for Openshift Virtualization topics

Creating a Basic VM Using Pre-Populated Templates

What Happens Inside of Openshift

What Happens Inside of Openshift

Keith Calligan
